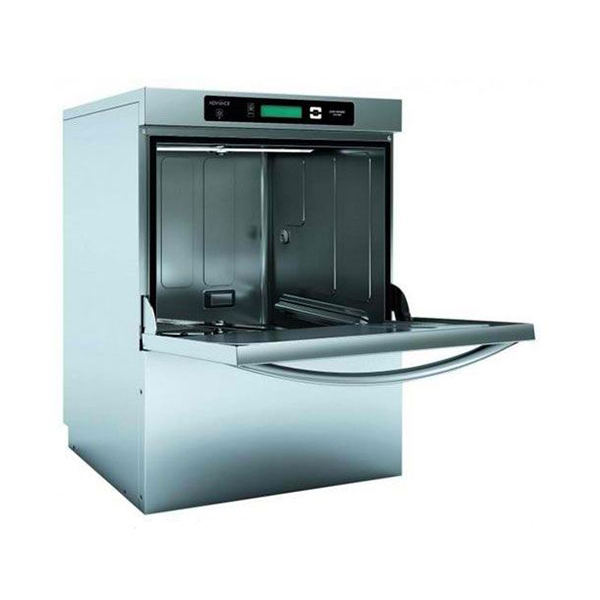

Fagor Evo-Concept Dishwasher CO-502BDD

SKU: FE.CO-502BDD

$5,684.25
RRP $7,579.00
SAVE $1,894.75
Share:



  • Dimensions: 600mm W x 600mm D x 830mm H
  • Power: 24V, 3.06kW, 15A (also available in 18A, 27A and 3~N)
  • Material: Stainless Steel
  • Weight: 60kg
  • Front Loading Undercounter Dishwasher
  • Hourly production: 40 baskets/hour - 720 dishes/hour
  • Max Dish Height: 380mm
  • Wash cycles: 90" - 180"
  • Wash pump: 600 W
  • Drain pump: 30 W. Drainage cycle
  • Tank with 2.8 kW heating element
  • Tank capacity: 20 litres
  • Boiler with multipower heating elements: 1,8 / 2,8 / 3,7 / 5,6 kW, 15Amp
  • Boiler capacity: 7 litres
  • Water consumption: 2.4 litres/rinse
  • Thermostatic temperature control: washing at 60ºC and rinsing at 90ºC
  • Can be used for 1/1 GN trays
  • Tray filters on the tank, made of AISI-304 stainless steel
  • Electronical control panel making it easy to use
  • Full Double skin body to isolate machine’s noise from the environment
  • The door has double skin with special pressed isolation material, and stamped finishing to improve noise isolation and to keep the heat inside the machine
  • Rock counterbalanced door
  • Double spring and stainless steel hinge system
  • The case allows the placement of the machine under surfaces of 850 mm height
  • Thermostop
  • Security thermostats
  • Built-in automatic rinse dispenser
  • Built-in detergent doser
  • Built-in non-return valve
  • Safety magnetic switch for door opening
  • Adjustable legs
  • Sales Unit: Each
  • Product Code: FE.CO-502BDD

E-VO CONCEPT front-loading and under counter dishwasher with double wall door and body (EFFI-SILENT), and a 3-position robust compensated door, with recessed wash tank, recessed basket guides, tray filter and wash and rinse arms in AISI-304 stainless steel.  Constant water consumption of 2.4 litres per cycle for the rinse with a mains pressure of 2 bar. New optimised hydraulic EFFI-WASH system, with stainless steel wash arms and one powerful 0.6 kW pump, guaranteeing a top quality effective and efficient wash with an optimum Sinner circle balance. It also has a built-in rinse aid dispenser and optional drainage pump (B) and detergent dispenser (DD) fitted at factory or supplied in kit form It has adjustable feet to permit levelling according to the needs of the establishment. Magnetic door open sensor. Electromechanical control panel making it easy to use.

1 year warranty on parts & labour

SKU FE.CO-502BDD
Brand Fagor

1 Year Parts and Labour Warranty
