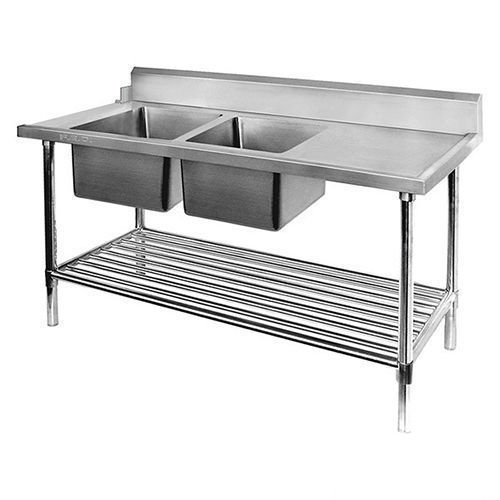

Double Bowl Dishwasher Inlet Left 2400mm Pot Shelf & Full Stainless

• Dimensions: 2400mm W x 700mm D x 900mm H
• Dimenions per Bowl: 450mm W x 450mm D x 300mm H
• Bowl Position: Left
• 90 mm Ø drain hole
• Specially designed for quick & simple assembly
• 4 legs per bench - 2100 & 2400 mm wide benches have 6 legs
• 1.2 mm S/S
• 15 mm wet edge
• Bowls are fully welded, polished inside & out
• Splashbacks
  • Stainless Steel backed • 150 mm high; 30 mm thick
  • Bevelled • fully enclosed
• Legs
  • 1.2 mm S/S; 42 mm Ø
  • Fully adjustable S/S polished disc feet that match the legs perfectly
  • Castor kits sold separately (lockable)
• Benchtops
  • 1.2 mm material; SUS304 (18/8)
  • Lined with XPS board, 15 mm thick & S/S panel
  • Special S/S ‘U’ channel reinforcements under
  • Ripple Surface
  • As the bench size increases so does the number of channels
• Pot Undershelves
  • 1.2mm S/S (18/8)
  • Outer frame tubes: 38 Ø 1.2 mm tube
  • Inner tubes: 25 Ø 1 mm tube with 40 mm spacing
• Comes with instruction manual & tools
• Supplied flat-packed for ease of transport
• Sales Unit: Each
• Product Code: FE.DSBD7-2400L/A

*Please Note:
Photos are for illustrative purposes only
LEFT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the left side
RIGHT side sink inlet bench - When facing the bench the dishwasher inlet & sinks are on the right side
